| 型號 | 量程(Max) | 靈敏度 | 直流測量精度 | 帶寬 | 上升下降時間 | 最大工作電壓 |
|---|

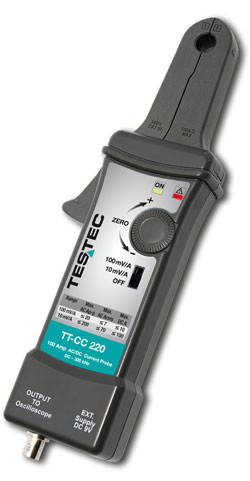

| TT-CC 220 | 10 A 100 A | 100 mV/A 10 mV/A | ±3% ±50mA @ 100 mV/A ±4% ±50mA @ 10 mV/A ±15% max @ 10 mV/A | DC-300 kHz | 1.2μs | 600 VAC RMS CAT II
300 VAC RMS CAT III |
| TT-CC 550 | 5 A 50 A | 200 mV/A 20 mV/A | ±3% ±30mA @ 200 mV/A ±4% ±300mA @ 20 mV/A ±15%@ 200 mV/A | DC-500 kHz | 0.7μs | 600 VAC RMS CAT II
300 VAC RMS CAT III |
| TT-CC 770 | 7 A 70 A | 500 mV/A 50 mV/A | ±3% ±20mA @ 500 mV/A ±4% ±200mA @ 50 mV/A ±15%@ 50 mV/A | DC-1 MHz | 0.35μs | 600 VAC RMS CAT II
300 VAC RMS CAT III |
| TT-CC 990 | 4 A 40 A | 1 V/A 100 mV/A | ±3%±10mA @1 V/A ±4%±100mA @100 mV/A | DC-1.5 MHz | 0.23μs | 600 VAC RMS CAT II
300 VAC RMS CAT III |
